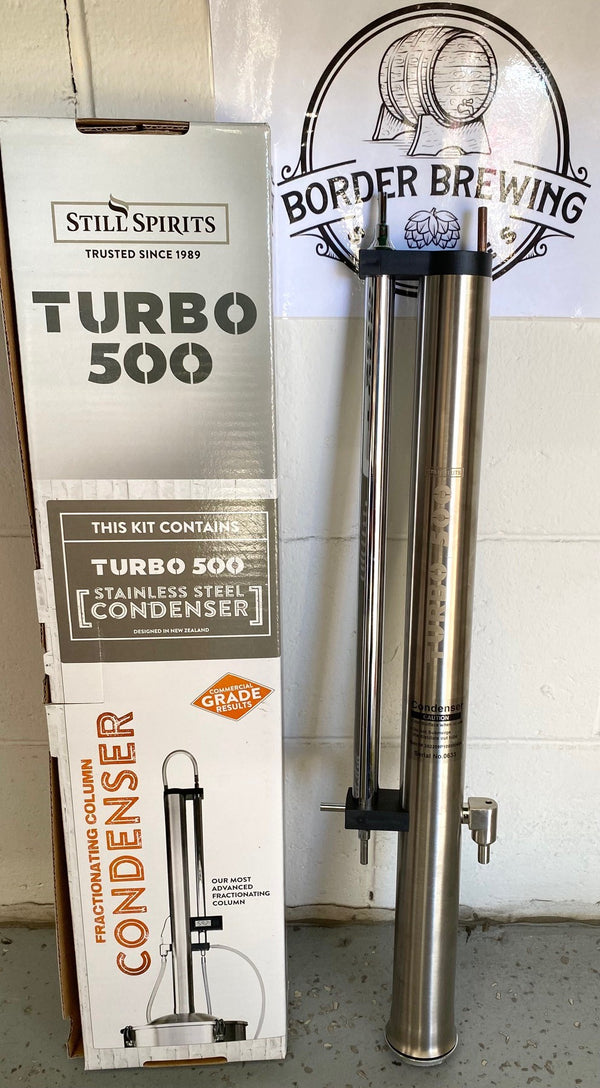

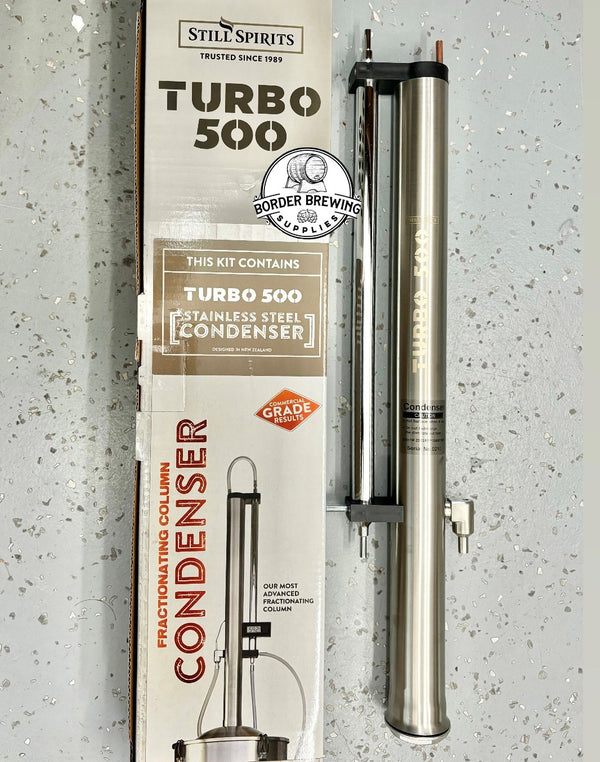

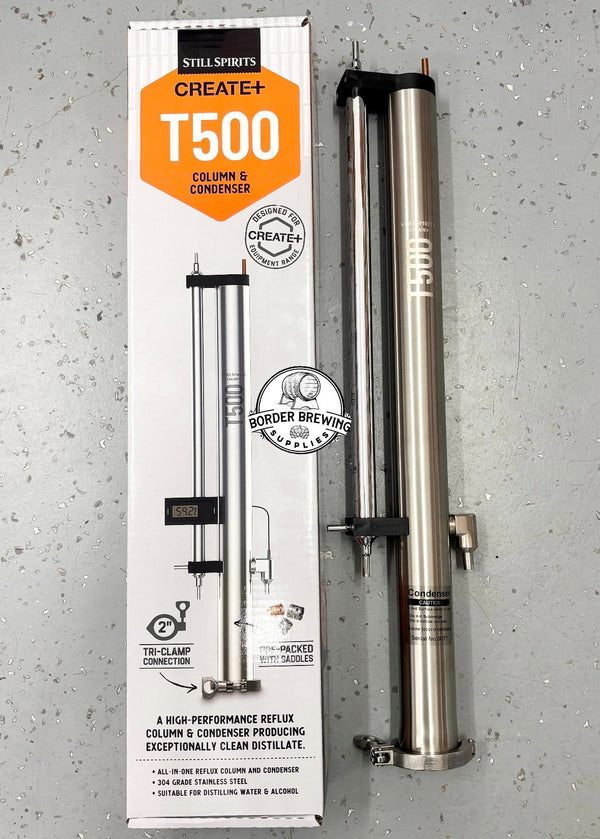

High-Performance Stainless Steel Reflux Condenser
The Still Spirits Create+ T500 Column & Condenser is a high-performance stainless steel reflux condenser designed to produce exceptionally clean neutral spirit and distilled water.
Its all-in-one reflux column and condenser is manufactured from durable 304-grade stainless steel and comes pre-packed with a combination of copper and stainless steel saddles. This packing creates effective vapour reflux while helping remove unwanted compounds from the distillate.
When operated according to the manufacturer’s instructions as part of a complete T500 system, the condenser can produce neutral spirit at up to 93% ABV before dilution.
Please note that this listing is for the column and condenser only. A compatible boiler is required and sold separately.
Why You’ll Love It
-
Produces exceptionally clean neutral spirit
-
Capable of producing distillate up to 93% ABV
-
Recovers up to 95% of the alcohol from a suitable wash
-
Durable 304-grade stainless steel construction
-
Pre-packed with copper and stainless steel saddles
-
Integrated reflux column and product condenser
-
Modern 2-inch tri-clamp connection
-
Suitable for distilling neutral spirit or water
-
Includes cooling-water connections and tap adaptors
-
Compatible with multiple boilers and brewing systems
-
Three-year manufacturer’s warranty
Why Use a Reflux Condenser?
A reflux condenser repeatedly condenses and re-vaporises the rising vapour inside the packed column.
This process improves separation and allows the system to produce a cleaner, higher-purity distillate than a traditional pot still. The finished neutral spirit can be diluted and used as a base for vodka-style drinks, spirit essences, liqueurs and other flavoured spirits.
The copper packing also helps reduce unwanted sulphur compounds, while the stainless steel packing provides a large surface area for efficient reflux.
Features
-
All-in-one reflux column and condenser
-
304-grade stainless steel construction
-
2-inch tri-clamp connection
-
Pre-packed copper and stainless steel saddles
-
Digital temperature monitoring
-
Integrated cooling-water system
-
Adjustable tap adaptor flow controller
-
Kitchen and garden tap adaptors
-
Suitable for alcohol or water distillation
-
Designed for intermediate-level distilling
Specifications
-
Brand: Still Spirits
-
Range: Create+
-
Model: T500 Column & Condenser
-
Condenser type: Reflux
-
Material: 304-grade stainless steel
-
Connection: 2-inch tri-clamp
-
Maximum distillate strength: Up to 93% ABV before dilution
-
Potential alcohol recovery: Up to 95%
-
Approximate yield: Up to 8 litres at 40% ABV from a suitable 25-litre wash
-
Height: Approximately 69cm
-
Width: Approximately 8.5cm
-
Depth: Approximately 16cm
-
Weight: Approximately 2.3–2.99kg
-
Average cooling-water use: Approximately 200 litres per 25-litre distillation when used with the Create+ Water Flow Regulator
-
Warranty: Three years
-
Experience level: Intermediate
Actual yield and purity depend on the wash, boiler, operating conditions and correct use of the equipment.
Compatible Boilers and Brewing Systems
The Create+ T500 Column & Condenser is designed for use with:
-
Still Spirits Create+ Boiler 25L
-
Grainfather G30 Brewing System
-
Grainfather G40 Brewing System
-
Grainfather G70 Brewing System
-
Compatible boilers fitted with a suitable 2-inch tri-clamp connection
Check the connection and installation requirements of your boiler before purchasing.
What’s Included?
-
Still Spirits Create+ T500 Column & Condenser
-
Create+ 2-inch tri-clamp
-
Pre-packed copper and stainless steel saddles
-
Digital thermometer
-
Two cooling-water tubes
-
Ceramic boil enhancers
-
Tap adaptor flow controller
-
Kitchen tap adaptor
-
Garden tap adaptor
-
Operating instructions
The boiler is not included and must be purchased separately.
How to Use
Secure the T500 Column & Condenser to a compatible boiler using the supplied 2-inch tri-clamp and appropriate seal.
Connect the cooling-water tubes and tap adaptor as directed in the manufacturer’s instructions. Check that every connection is secure and that cooling water is flowing correctly before heating the boiler.
Monitor the digital thermometer and regulate the cooling-water flow throughout the distillation. Collect and separate the distillate strictly according to the supplied instructions.
Allow the equipment to cool completely before disassembly or cleaning.
Does This Include the T500 Boiler?
No. This product includes the T500 column, reflux condenser and listed accessories only.
A compatible boiler is required to create a complete distillation system.
Is This the New Create+ Model?
Yes. This is the Still Spirits Create+ model with a 2-inch tri-clamp connection.
This connection makes the condenser easier to install and allows it to be used with compatible Create+ and 2-inch tri-clamp equipment.
What Can the T500 Condenser Produce?
The T500 is designed primarily for producing high-purity neutral spirit and distilled water.
Neutral spirit can be diluted to the required drinking strength before being used as a base for vodka-style drinks, spirit essences and liqueurs.
How Strong Is the Distillate?
When operated correctly with a suitable wash and compatible boiler, the T500 can produce distillate at up to approximately 93% ABV before dilution.
All spirit must be accurately measured and diluted to a safe and suitable strength before use.
Does the Column Come with Packing?
Yes. The column is supplied pre-packed with a combination of copper and stainless steel saddles.
The packing provides the internal surface area required for effective reflux and separation.
Can It Be Used to Distil Water?
Yes. The T500 Column & Condenser can be used to produce distilled water.
Its stainless steel column and mixed copper and stainless steel packing help remove impurities during the distillation process.
Is This Suitable for Making Flavoured Spirits?
The T500 is designed to produce clean neutral spirit rather than carry flavour from the wash.
The finished neutral spirit can be diluted and combined with suitable whiskey, bourbon, rum, gin, vodka and liqueur flavourings.
Is the T500 Suitable for Beginners?
The manufacturer classifies the T500 Column & Condenser as intermediate-level equipment.
New distillers should read the complete instructions, understand cooling-water control and become familiar with safe distillation procedures before operating the system.
Important Legal and Safety Information
This equipment is intended for lawful use only.
The distillation of alcohol is restricted under Australian law and may require permission or licensing. Customers are responsible for understanding and complying with all applicable laws and regulations.
Always follow the manufacturer’s operating and safety instructions. Never leave operating distillation equipment unattended.
