Still Spirits Create+ 25L Boiler – Dual Element Distilling Boiler
The Still Spirits Create+ 25L Boiler is a powerful and versatile stainless steel distilling boiler designed for use with the Still Spirits Create+ T500, T500 Pro and Alembic Copper Dome & Condenser systems.
Featuring dual 1100W heating elements, the boiler can operate at the full 2200W for rapid heating and reflux distillation, or at 1100W when gentler heat input is required for pot distillation, spirit runs and flavour-focused distilling.
Constructed from 304 grade stainless steel, the Create+ Boiler includes a stainless steel ball-valve drain, boil-dry protection, thermal cut-out fuse and a 2" Tri-Clamp to DN40 threaded adapter, providing greater flexibility for modern distilling setups.
An excellent boiler base for anyone building or upgrading a T500 reflux still, pot still or 2" Tri-Clamp distilling system.
Why You'll Love It
- Genuine Still Spirits Create+ 25L Boiler
- 25 litre capacity
- Powerful 2200W maximum output
- Dual 1100W heating elements
- Run at 2200W or reduce to 1100W
- Excellent control for reflux and pot distillation
- Compatible with Create+ T500 & T500 Pro systems
- Compatible with Still Spirits Alembic Copper Dome & Condenser
- Includes 2" Tri-Clamp to DN40 threaded adapter
- 48mm boiler lid opening
- 304 grade stainless steel construction
- Stainless steel ball-valve drain
- Boil-dry reset protection
- Thermal cut-out fuse
- High-temperature food-grade silicone
- Designed in New Zealand
- 3 year manufacturer warranty

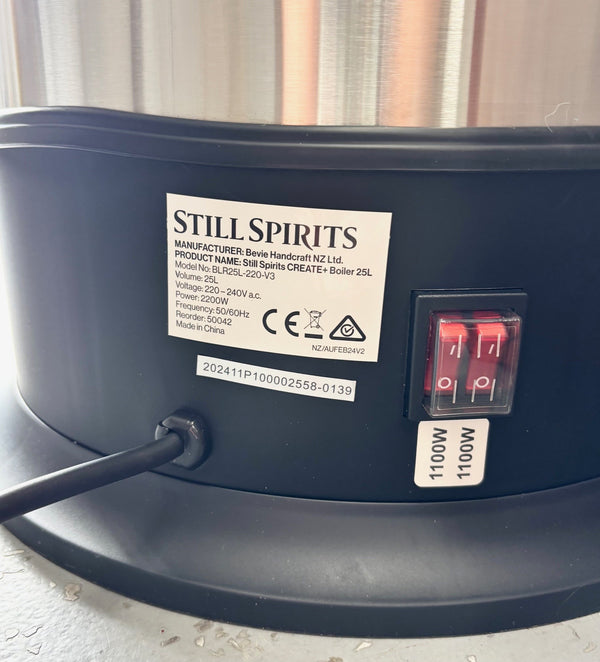

Dual Element Power Control – 1100W or 2200W
One of the biggest advantages of the Still Spirits Create+ Boiler is its dual element power control.
With both power switches turned on, the heating elements provide the full:
2200W
This provides fast heating and is ideal when bringing a wash up to operating temperature or running a compatible reflux still.
Switch one element off and the boiler operates at:
1100W
The lower power setting provides gentler heat input and is particularly useful for pot distillation and flavour-focused spirit runs.
This makes the Create+ Boiler considerably more versatile than a simple fixed-power boiler.
Designed for the Still Spirits T500
The Create+ 25L Boiler is the recommended boiler base for the current generation of:
- Still Spirits Create+ T500 Column & Condenser
- Still Spirits Create+ T500 Pro Column & Condenser
When paired with an appropriate T500 reflux column, the boiler provides the heat source required for producing high-purity neutral spirit or distilled water.
Its 25 litre capacity also makes it ideally sized for typical home distilling wash volumes.
Perfect for the Still Spirits Alembic Pot Still
Pair the Create+ Boiler with the Still Spirits Alembic Copper Dome & Condenser to create a versatile pot still setup.
The ability to reduce the boiler to 1100W is particularly useful when running flavour-focused spirits where a gentler boil is desirable.
Suitable applications include appropriately prepared washes for:
- Whiskey
- Bourbon-style spirits
- Rum
- Gin
- Brandy-style spirits
- Botanical distillation
- Hydrosols
2" Tri-Clamp Compatibility
The Create+ Boiler includes a 2" Tri-Clamp to DN40 threaded adapter.
This allows the boiler to connect with compatible 2" Tri-Clamp distilling accessories, opening up considerably more options for customising or expanding your distilling setup.
The supplied adapter includes the required silicone gasket and DN40 nut.
304 Stainless Steel Construction
The boiler body is manufactured from durable 304 grade stainless steel, making it well suited to repeated home distilling use.
The boiler also incorporates a stainless steel ball-valve waste tap, making it easier to drain the boiler after a distillation run.
Built-In Safety Features
The Create+ Boiler incorporates important safety features including:
- Boil-dry reset
- Thermal cut-out fuse
- High-temperature food-grade silicone sealing
- Secure boiler lid
Always operate distilling equipment according to the manufacturer's instructions and applicable laws and regulations.
More Than Just a Spirit Boiler
When configured appropriately, the 25L stainless boiler can also provide a useful heated vessel for other home brewing and distilling applications.
Potential applications include:
- Distillation
- Heating water
- Sparge water heating
- Hot liquor applications
- Distilled water production
- Hydrosol production
Always ensure any accessories or configurations used are suitable for the boiler and within the manufacturer's specified limits.
Specifications
Brand: Still Spirits
Range: Create+
Product: Boiler 25L
Capacity: 25 Litres
Maximum Power: 2200W
Reduced Power: 1100W
Heating Elements: Dual 1100W
Construction: 304 Grade Stainless Steel
Lid Opening: 48mm
Accessory Connection: 2" Tri-Clamp via Supplied Adapter
Drain: Stainless Steel Ball Valve
Safety: Boil-Dry Reset & Thermal Cut-Out Fuse
Dimensions: Approx. 64cm H × 36cm W × 37cm D
Weight: Approx. 5.42kg
Designed In: New Zealand
Warranty: 3 Years
Suitable For: Reflux Distillation, Pot Distillation, Distilled Water & Hydrosols
What's Included?
- 1 × Still Spirits Create+ 25L Boiler
- 1 × Create+ Boiler Lid
- 1 × 2" Tri-Clamp to DN40 Threaded Adapter
- 1 × Silicone Gasket
- 1 × DN40 Nut
- Instructions
Distilling column, condenser and Alembic Copper Dome are not included and are available separately.
Column & Condenser Limits
The Create+ 25L Boiler is primarily designed for small to medium-sized distilling setups without excessively heavy or off-centre attachments.
When used with the appropriate Still Spirits boiler lid or Alembic Dome, the manufacturer specifies:
Maximum column/condenser height: Up to 1.1m from the boiler lid or dome
Maximum total column/condenser weight: Up to 11kg
This includes up to approximately 2kg of off-centre weight from components such as a swan neck, lyne arm or parallel condenser offset up to 160mm from the main column.
Frequently Asked Questions
Is this the Still Spirits T500 Boiler?
This is the current Still Spirits Create+ 25L Boiler, designed as the boiler base for the current Create+ T500 and T500 Pro systems.
How powerful is the Still Spirits 25L Boiler?
Maximum heating power is 2200W using both 1100W elements.
Can I reduce the boiler power?
Yes. Switch one element off and the boiler operates at approximately 1100W, providing gentler heating for applications such as pot distillation.
Can I use this with the T500 reflux still?
Yes. The Create+ 25L Boiler is specifically designed for use with compatible Still Spirits Create+ T500 and T500 Pro Column & Condenser systems.
Can I use it with a Still Spirits Alembic Dome?
Yes. It is designed for use with the Still Spirits Create+ Alembic Copper Dome & Condenser.
Does it have a 2" Tri-Clamp connection?
The boiler includes a 2" Tri-Clamp to DN40 threaded adapter, allowing compatible 2" Tri-Clamp accessories to be connected.
What is the boiler made from?
The boiler is manufactured from 304 grade stainless steel.
Does the boiler have a drain tap?
Yes. It includes a durable stainless steel ball-valve drain.
What size is the boiler?
The boiler has a maximum capacity of 25 litres and measures approximately 64cm high × 36cm wide × 37cm deep.
Can I use this for reflux and pot distilling?
Yes. Its dual-power design makes it particularly versatile. Use full 2200W power where appropriate for reflux distillation and reduce to 1100W for gentler pot distillation.
Can I make gin with this boiler?
When paired with suitable Still Spirits pot distilling equipment, the boiler can form part of a setup for making botanical and flavour-focused spirits such as gin.
Does it include a T500 column?
No. This product is the Create+ 25L Boiler and supplied boiler accessories only. Columns, condensers and Alembic equipment are sold separately.
Does it have boil-dry protection?
Yes. The boiler features a boil-dry reset and thermal cut-out fuse.
