Replacement Temperature Sensor for the Still Spirits Turbo 500
Replace a damaged, faulty or inaccurate thermometer with the Still Spirits T500 Crimped Temperature Sensor, designed for use with the Still Spirits Turbo 500 (T500) condenser.

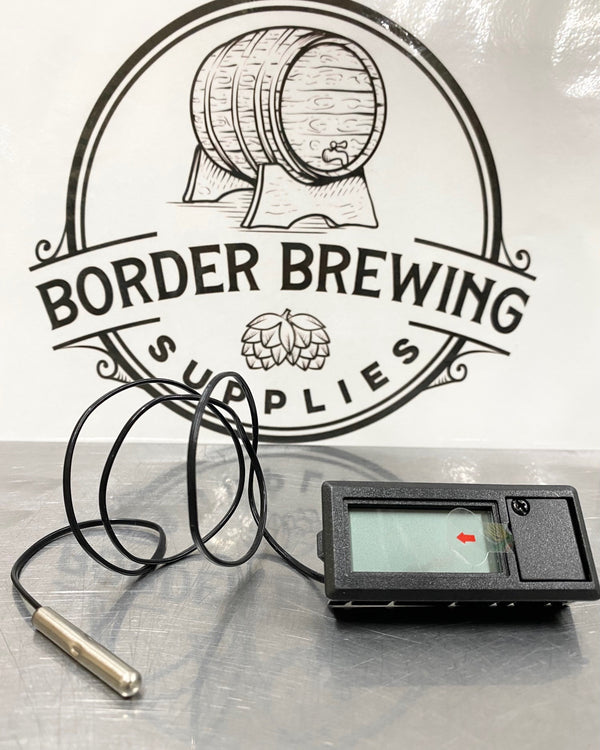

This replacement digital temperature sensor features a crimped stainless steel probe with Teflon-coated wire, allowing it to fit securely into the T500 condenser water outlet and accurately monitor cooling-water temperature during operation.
Accurate temperature monitoring is an important part of operating a T500 correctly. Cooling-water flow through the condenser is adjusted according to the outlet temperature, helping you maintain consistent operation and control the speed and quality of the distillation.
If your existing T500 thermometer is giving erratic readings, has damaged wiring, a faulty connection or is no longer functioning correctly, replacing the complete sensor is a simple way to restore reliable temperature monitoring.
Why You'll Love It
Genuine Still Spirits T500 replacement temperature sensor
Designed for the Turbo 500 condenser
Crimped stainless steel temperature probe
Teflon-coated sensor wire
Digital temperature display
Direct replacement for compatible T500 temperature sensors
Accurately monitors condenser water outlet temperature
Helps maintain correct T500 operating conditions
Suitable for replacing damaged or unreliable sensors
Battery included
Why Temperature Monitoring Matters on a T500
Cooling-water temperature is one of the most important controls when operating a Still Spirits T500 reflux still.
The temperature sensor monitors the cooling water leaving the condenser. By adjusting the cooling-water flow, the operator can maintain the correct outlet temperature and control the operation of the condenser.
Still Spirits recommends maintaining a cooling-water outlet temperature of approximately 55–65°C during normal T500 operation.
Running toward the lower end of this range generally produces a slower output with greater purity, while operating toward the upper end increases output speed with some reduction in strength and purity.
A reliable temperature sensor therefore makes it much easier to achieve consistent results from one distillation run to the next.
What's Included
1 × Still Spirits T500 Crimped Temperature Sensor
1 × Battery
Product Specifications
| Specification | Details |
|---|---|
| Product | T500 Crimped Temperature Sensor |
| Brand | Still Spirits |
| Application | Replacement T500 Thermometer |
| Compatible With | Still Spirits Turbo 500 |
| Probe | Crimped Stainless Steel |
| Wiring | Teflon-Coated Wire |
| Display | Digital |
| Display Resolution | 0.1°C |
| Temperature Units | Celsius & Fahrenheit |
| Battery | Included |
| Measurement | T500 Condenser Water Outlet Temperature |
When Should I Replace My T500 Temperature Sensor?
Consider replacing your T500 temperature sensor if you experience:
Erratic or rapidly changing temperature readings
No temperature reading
Intermittent display or sensor operation
Damaged Teflon-coated wiring
Damaged stainless steel probe
Failed or damaged crimp connection
Readings that appear inconsistent with normal T500 operation
Before replacing the sensor, check that it is correctly installed and that your condenser water flow and plumbing are operating correctly.
Installation
Remove the existing temperature sensor from the T500 condenser.
Install the replacement crimped stainless steel probe into the appropriate temperature sensor position on your compatible T500 condenser.
Ensure the probe is correctly seated and secure.
Do not push the temperature probe excessively far into the water outlet, as incorrect positioning may restrict water flow.
Once installed, run the T500 according to the manufacturer's instructions and monitor the cooling-water outlet temperature on the digital display.
Frequently Asked Questions
What is the T500 Crimped Temperature Sensor?
It is a replacement digital thermometer and temperature probe designed for compatible Still Spirits Turbo 500 condensers.
What temperature does the sensor measure?
The sensor monitors the cooling-water outlet temperature from the T500 condenser.
This temperature is used to help the operator correctly adjust cooling-water flow during distillation.
What temperature should my T500 run at?
Still Spirits recommends maintaining the condenser cooling-water outlet temperature at approximately 55–65°C during normal T500 operation.
Does this fit older T500 stills?
The crimped temperature probe is compatible with T500 models designed to use this style of temperature sensor, including earlier compatible T500 condensers with a temperature probe inlet.
Always compare your existing sensor and connection before ordering if you have an older T500.
Why is my T500 temperature reading erratic?
Erratic readings may indicate a damaged or failing temperature sensor, but they can also result from incorrect water flow, incorrect setup or operating conditions.
Check your T500 setup before replacing the sensor.
Does the sensor include the digital thermometer?
Yes. This is the complete replacement temperature sensor assembly with digital display, Teflon-coated wire and stainless steel probe.
Does it include a battery?
Yes. A battery is included.
Can I display the temperature in Celsius or Fahrenheit?
Yes. The digital thermometer can display temperature in Celsius or Fahrenheit.
